Beneteau Swift Trawler 48

Hull

• Composition: Polyester resin, infusion – fiberglass.
• Profile: Semi-planing hull
• Color: White gelcoat 9010
• Internal structure of the hull: Monolithic laminate (polyester resin, infusion - fiberglass)
• Composition: Sandwich (polyester resin, infusion - fiberglass / balsa wood)
• Structural internal framework: Monolithic laminate (polyester resin - fiberglass)
• Color: White gelcoat 9010
• Coating: Non-slip coating type "diamond pattern”



Finishing

• Wood finishing: Alpi teak
• Deck: Teak, black seams
• Interior upholstery: PVC Marlin Brilliant White
• Helmsman's seat: Anthracite
• Exterior upholstery: PVC Marlin Brilliant White



Deck

• Wide passage from the stern to the bow along the starboard side.
• Wide door from the helm station to the starboard side deck.
• Gate from the starboard side deck to the pier.

Mooring Equipment

• Double bow roller made of stainless steel
• Electric vertical windlass 2000 W with up/down control and remote operation from the windlass, wheelhouse, and flybridge
• 10 aluminum mooring cleats (length 400 mm)
• Stainless steel fendering
• 2 lockers with drain valves and polyester lids
• Complete mooring kit:

-Delta anchor 25 kg

-chain (diameter 12 mm, length 85 m)

-mooring lines

Deck safety

• Stainless steel bow railing, open and surrounding the cockpit up to the steps
• Stainless steel handrails, upholstered in leather, in the cockpit



Cockpit

• Hydraulic swimming platform, load capacity 350 kg, tender attachment
• Hydraulic gangway (retractable length 2.72 m)
• Self-draining cockpit
• Cockpit canopy
• 2 storage compartments in the cockpit floor
• Shower in the cockpit with hot/cold water
• Double access door to the cockpit on the port side
• Swim platform with stringer and natural teak grates
• Ergonomic swimming ladder with handrails on the swim platform
• 1 access door made of plexiglass to the deck on the starboard side from the cockpit
• Teak in the cockpit and on the deck of the starboard side
• Removable swimming ladder on the port side

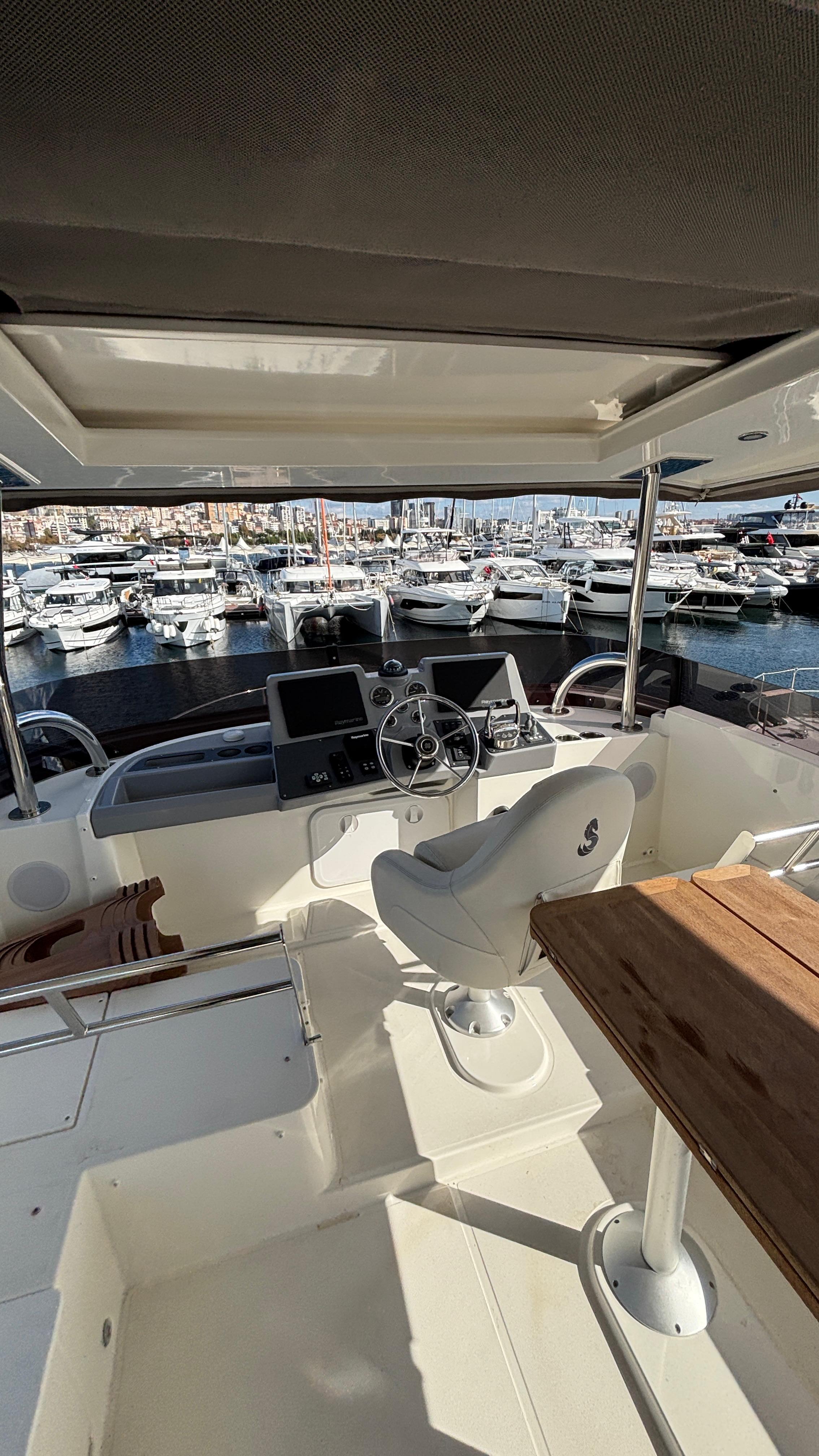

Flybridge

• Flybridge hardtop with fiberglass mast for mounting navigation lights, radar, and antennas
• Flybridge closure kit
• Self-draining flybridge
• Retractable stainless steel ladder with double access ramp to the flybridge with teak steps
• Tinted grey plexiglass windscreen
• Access through hatch
• Stainless steel railing surrounding the aft of the flybridge
• Central steering console
• Control panel, including:

-Electronic engine control

-Electric windlass control

-Bow thruster

-Transom plates

-Instrument indicators

-Steering angle indicator

• Stainless steel steering wheel
• Magnetic compass
• Hydraulic steering
• USB port
• 1 adjustable helm seat and 3 second pilot seats with reclining backs
• Lounge on the flybridge, consisting of 1 L-shaped sofa with built-in storage and a folding teak table
• Stainless steel sink with hot/cold water mixer
• 40 l refrigerator
• Kenyon 2356 electric grill
• Double waste bin
• 6-person liferaft

Additional

• 10 cup holders
• Insect screens on all portholes throughout the boat
• Diving compressor



Interior

Salon

• Ceiling height: 1.97 m
• Lifted U-shaped table, convertible into a double bed (2.4 x 1.32 m) with electric base
• Divider rail and curtains for sleeping area
• Roman blinds with opening window
• Dining table made of lacquered wood with adjustable height
• Cupboard with wine cooler
• Sliding door at the stern with 3 panels featuring a black lacquered aluminum frame, equipped with a mosquito net
• Stainless steel handrail upholstered in leather, on the cockpit ceiling lining

Galley

• Ceiling height: 1.97 m
• L-shaped galley
• Full-size fridge/freezer 255 l (Frige & Freezer VITRIFRIGO C270 DP 3C "BNT")
• Corian countertop
• Large stainless steel sink with hot/cold water mixer
• Drinking water tap
• Electric microwave oven (Asko OCM8487S)•Cooktop - 3-burner induction stove
• Dishwasher for 6 place settings (Electrolux ESL2500RO)
• Icemaker (Indel Webasto White)
• Upper cabinets
• Cutlery drawer
• Storage space, cabinets and drawers
• Double trash bin
• 220 V sockets

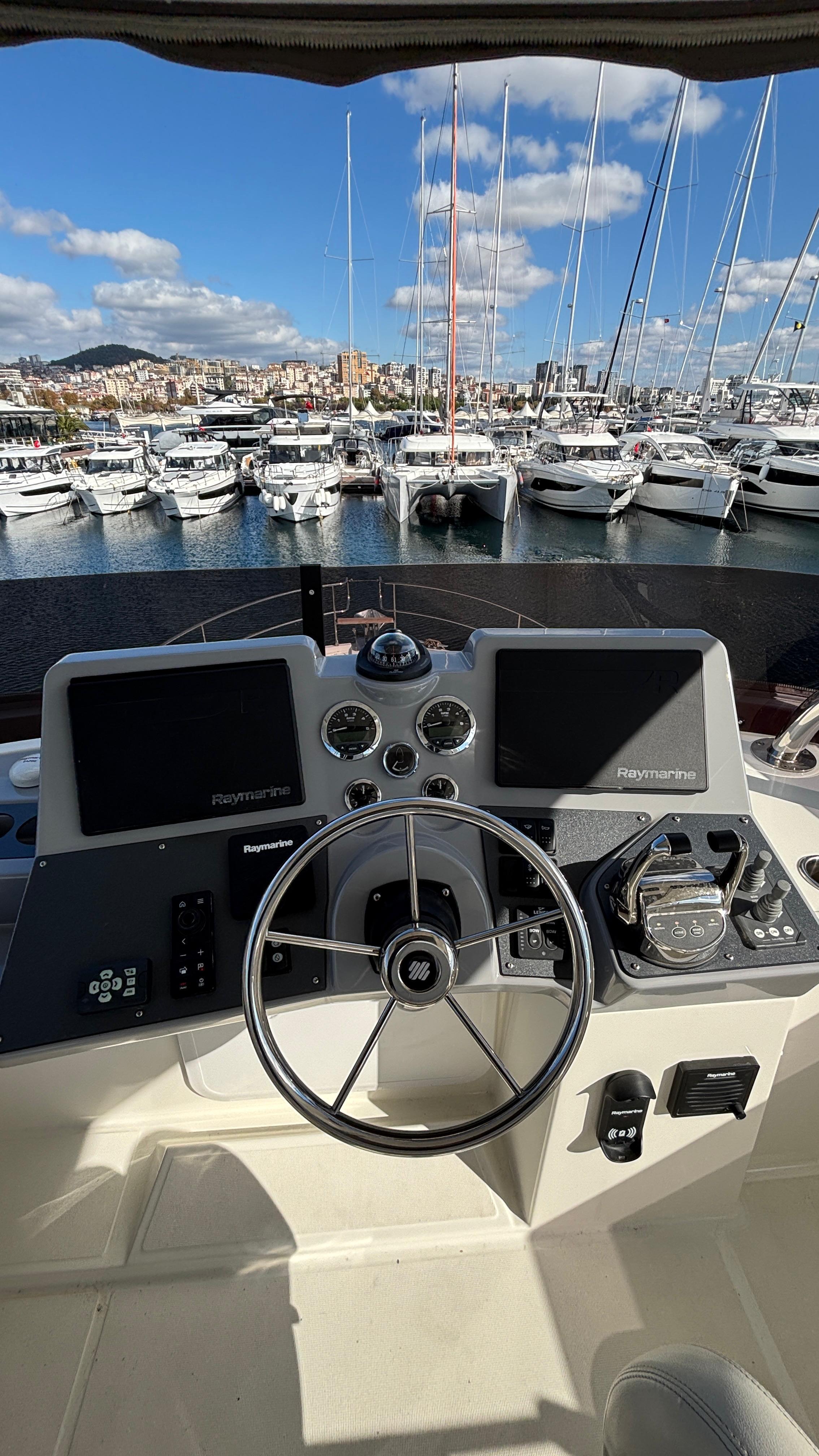

Control station

• Windshield made of clear glass with black lacquered aluminum frames
• Anti-glare coating
• 3 synchronized wipers
• Windshield washer
• Windshield heating system
• Side windows with black lacquered aluminum frames
• Dashboard with space for navigation electronics
• Engine readings: tachometer, fuel level gauge, warnings, steering angle indicator, flap indicators
• Control: electric windlass, bow thruster, navigation lights, electric wipers, electronic control for two engines
• Steering wheel
• Magnetic compass
• Cup holder
• Helm seat with foldable bolster, fully adjustable foot support with foldable footrest
• Sliding side door with direct access to the side deck, equipped with a mosquito net

Owner's cabin (fore)

• Ceiling height: 1.96 m
• Double bed (1.99 x 1.60 m)
• Storage space under the bed
• Storage space on both sides of the bed
• Large mirror
• 1 hanging cabinet with lighting
• 1 cabinet with shelves
• 1 opening deck hatch with mosquito net/shade
• 2 portholes with opening ports and blackout curtains

Owner's Head (Shower Cabin)

• Ceiling Height: 1.96 m
• Separate shower cabin with seat and porthole
• Deck hatch with mosquito net/curtain
• Mirror
• Upper and lower cabinet
• Electric toilet with seawater flush
• Oval sink
• 1 porthole

VIP cabin

• Ceiling height: 1.92 m
• 2 single beds (1.98 x 0.7 m) with infill cushions to make a double bed
• Door to the day head
• Nightstand
• Large mirror
• Wardrobe
• Cupboards
• Storage under the bed
• 3 shelves
• Side porthole with opening port and blackout curtain

Third cabin (starboard)

• Ceiling height: 2.01 m
• Double bed (1.94 x 1.40 m)
• Nighstand
• Wardrobe
• Storage space under the bed
• Opening side portholes with curtains
• Combined washer/dryer (Samsung)

Day head (port side)

• Ceiling height: 1.93 m
• Mirror
• Upper and lower cabinet
• Electric toilet with sea water flushing
• Oval sink
• Separate shower cabin with seat and porthole
• Deck hatch with mosquito nets

Engines

• Shaft line
• Four-blade propellers
• Cummins QSB 6.7 l engines 2 x 425 HP (approximately 600 hours of operation)
• Cummins joystick (engines and bow thruster) - installed at the main control station, on the flybridge and in the cockpit
• Fuel filters
• Sea water filters
• Engine room sound insulation with high-density foam (40 mm thickness)
• Air intake for engine compartment cooling on the port side hull
• 1 fire extinguisher
• Two fuel tank filling ports
• 2 aluminum fuel tanks (capacity = 2 x 965 l), interconnected and prepared for FPS system connection (fuel cleaning system)
• Automatic fire suppression system
• Spare parts for engines (fuel filters, oil filters, anodes, impellers, belts, etc.)

Equipment

• Electrical panel (12 V / 220 V)
• Shore power socket (220 V)
• Generator 7.5 kW (MASE IS 9.6B)
• 12 sockets 220 V: 2 in the salon, 2 in the galley, 2 in the owner’s cabin, 1 in the VIP cabin, 1 in the 3rd cabin, 1 in the owner’s head, 1 in the 2nd head, + 2 for the television (salon + owner’s cabin)
• 12 USB sockets: 2 in the salon, 2 at the helm, 4 in the owner’s cabin, 2 in the VIP cabin, 2 in the 3rd cabin
• 2 double antenna sockets (TNT - SAT)
• 4 service batteries 12 V 140 Ah + 3 service batteries 12 V 90 Ah
• 4 engine starting batteries 12 V 50 Ah
• 4 bow thruster batteries 12 V 50 Ah
• 2 chargers 25 Ah
• 1 socket 12 V
• Inverter 2 kVA
• Outdoor and indoor lighting (ceiling lights, reading lights)
• LED indirect lighting
• Outdoor lighting (navigation lights, anchor light with stainless steel mounts)
• 4 spotlights: 2 at the bow and 2 at the stern with a control unit located at the main helm and on the flybridge

Water Supply System

• 1 manual bilge pump (cockpit)
• 2 automatic electric bilge pumps
• Pump with a hydrophore
• 40 l water heater powered by the engine heat exchanger and 220 V
• Filling neck for water tank
• 2 molded Roto water tanks (2 x 320 l)
• Drain outlet for black water tank
• Advanced deck wash system allowing the use of seawater as well as tank water: Through valve for seawater intake
• Three-way valve for selecting the water source (off/seawater/tank water)
• Separate pump for deck washing and hydro accumulator
• Access to seawater in the galley (seawater source additionally connected to the galley mixer)
• Two outlets for deck washing (1 in the cockpit and 1 on the starboard deck)
• Shore freshwater supply system (when onshore allows connecting the yacht to the shore water supply system instead of using water from tanks)
• Water maker 60 l/hour
• Extended drinking water supply system consisting of: Separate tank (45 l) with filling neck
• Separate pump and accumulator
• Galley faucet
• Connection to ice maker through additional filter + additional ventilation for black water tank
• 5 additional level sensors: 1 sensor for black water tank
• 1 sensor for gray water tank
• 2 freshwater tank sensors
• 1 drinking water tank sensor

Navigation system

• 2 Raymarine AXIOM PRO 12-12" multifunction displays - at the main control station
• 2 Raymarine AXIOM PLUS 12-12" multifunction displays - on the flybridge
• Raymarine ACU400 autopilot with 2 Raymarine p70Rs displays, installed at the main control station and on the flybridge
• 1 Raymarine Ray90 VHF radio, installed at the main control station, with a wireless handset located on the flybridge
• 1 Class B AIS transponder Raymarine AIS700
• 1 Raymarine QUANTUM 2 Doppler radar
• 1 Raymarine AR200 augmented reality system
• 1 thermal imaging camera (FLIR M332) with a control unit JCU installed at the main control station
• 1 Raymarine EV-1 9-axis sensor tracking the vessel's motion in all three dimensions
• 1 Simrad HC60 satellite compass
• 1 Raymarine CAM210IP forward camera
• 3 rear and side cameras Raymarine CAM220IP
• 1 loudspeaker
• 2 river radio stations NavCom CPC-300, installed at the main control station and on the flybridge
• 1 set of light impulse signal lights with control at the main control station and on the flybridge

Air conditioning and heating system

• Central heating system based on Eberpacher Hydronic M-II (12 kW) with separate zonal control:

- Salon

- Owner's cabin and owner's head

- VIP cabin and day head

- Third cabin

• Air conditioning package (48,000 BTU) Mediterranean & Tropical based on Webasto, integrated into the vessel's control system:

- Salon - 2 x 16,000 BTU

- Owner's cabin - 1 x 8,000 BTU

- VIP cabin and third cabin - 1 x 8,000 BTU

Smart Onboard System

• Intelligent technology "SEANAPPS":

- For monitoring the boat's condition and receiving alerts, as well as recommendations for maintenance via the connected mobile application

• Type of collected information (GPS position, batteries, engine data, navigation data, etc.)
• AMS web server (vessel management)

Entertainment

• Extended audio system based on FUSION

Salon

• APOLLO RA670 stereo system
• SAMSUNG 43" SMART TV
• Apple TV
• HDMI output for connecting a laptop or other HDMI video source
• 2 FM-F77RW speakers
• 1 FM-S10SW subwoofer
• 1 MS-AM402 amplifier
• 1 ARX remote control unit (installed on the steering wheel for quick access to the stereo system functions)

Cockpit

• 2 FM-F77RW speakers
• 1 SG-S10CW subwoofer
• 1 SG-DA41400 amplifier
• 1 ERX400 remote control unit

Flybridge

• 2 XS-F77CW speakers
• 2 XS-F77CW speakers
• 1 subwoofer SG-S10CWB
• 1 amplifier SG-DA41400
• 1 remote control unit ERX400
• Stereosystem APOLLO RA670, installed in the owner's cabin: ZONE 1: OWNER'S CABIN
• 2 speakers FM-F77RW
• TV and video sources:
• •Digital TV antenna unit, installed on the mast

Owner's cabin

• SMART TV SAMSUNG 24"
• Kroks Rt-Cse DM e6 router with two built-in LTE cat.6 modems
• Wi-Fi throughout the yacht
