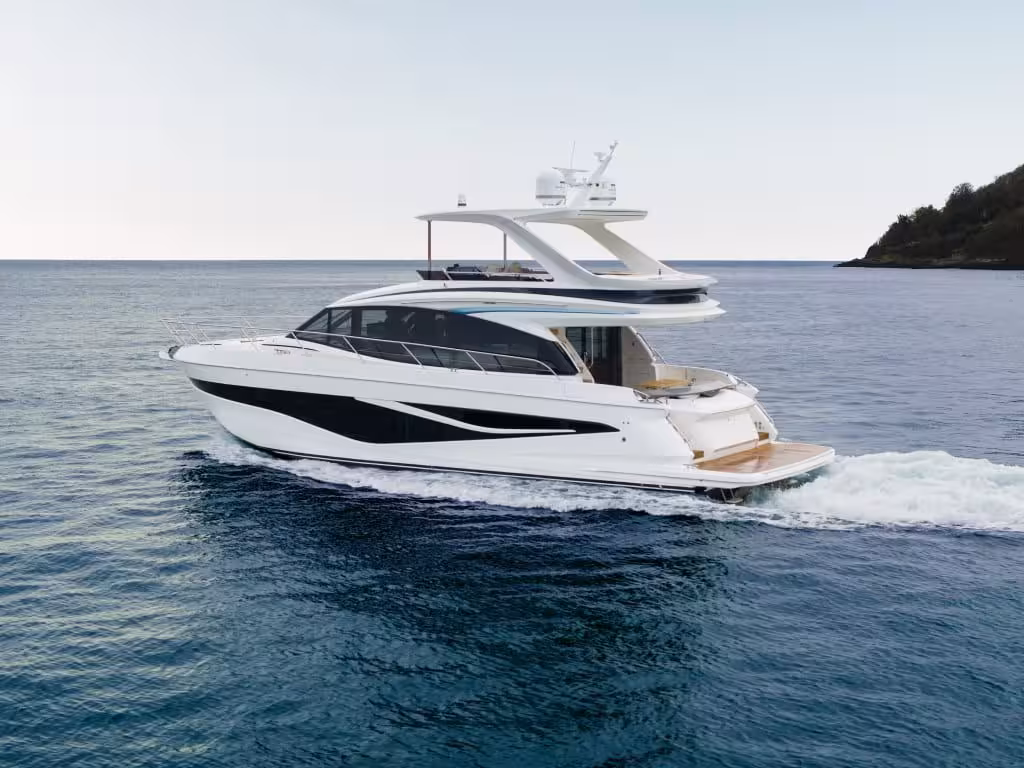

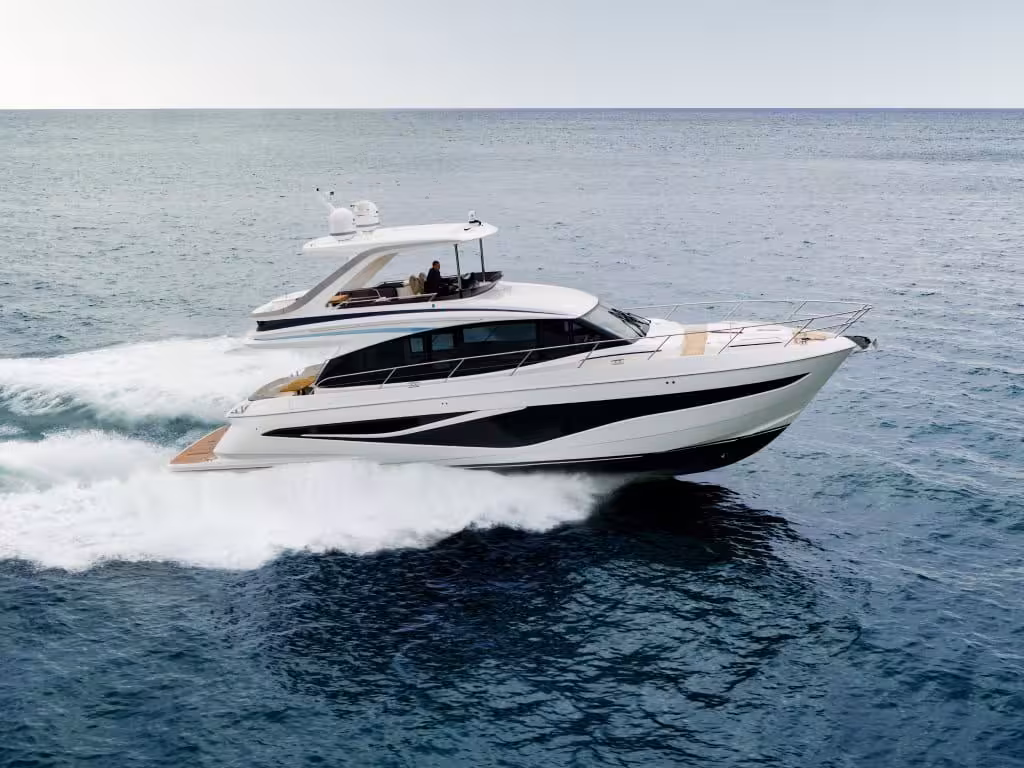

Princess F58

GALLEY

• Combination microwave/convection oven with grill
• Stainless steel sink with mixer tap
• White solid material galley worktop (satin finish) 4-zone ceramic hob
• Extractor fan for hob
• Two lockers
• Full-size refrigerator/freezer (270 l)
• Waste bin
• Drawers and cupboards for storage
• Top-loading storage compartment in galley corner with lid on top
• 220/240 V electrical outlets (4)
• Manual roll-up blinds on windows
• V-groove solid wood flooring

WATER SYSTEM

• Deck filler
• Water tanks with capacity (excluding calorifier) of 139 gal/166 US gal/630 l plus 73 l hot water calorifier
• Water heated from engines and by 3 kW immersion heater
• Automatic water pump with filter
• Circuit breaker on main distribution panel
• Water level indicator

DECK EQUIPMENT

• Teak-laid transom platform, transom steps, cockpit deck, flybridge ladder and steps leading to foredeck
• Reversible electric anchor windlass with control from foredeck and main helm station
• Bow roller with automatic anchor deployment and retrieval. Self-stowing anchor system including galvanised Lewmar Delta anchor (32 kg) with 40 m of 9.5 mm galvanised chain
• Deck hatch for chain locker access — 2
• lockers in foredeck
• Stainless steel hawse pipes with backing plates to prevent chafe (1 pair)
• Bow, stern and spring cleats in stainless steel with backing plates to protect the structure from line chafing (4 pairs)
• Stainless steel railing and guardrail Foam-filled rubbing strake with stainless steel insert
• Deck-level LED lighting Illuminated crown logo on transom
• Full set of IMO navigation lights
• Anchor light
• Remotely controlled searchlight Horn (connected to VHF)
• Two electric horns Stern flag socket
• Fuel and water fillers (one on each side)
• Coastal discharge fitting for holding tank
• Emergency hatch on foredeck
• Seating area on foredeck with mooring fender storage and drink holders (2)
• Sunbathing area on foredeck with two fixed sun loungers with integrated storage locker and drink holders (4)
• Covers for foredeck sun loungers Mooring fender storage on port side

COCKPIT AND BATHING PLATFORM

• Self-draining system
• Fixed bathing platform
• U-shaped upholstered seating Folding teak dining table with drink holders (4)
• Stainless steel handrails LED overhead and deck-level lighting Built-in staircase to flybridge with teak step treads
• LED step edge lighting Life raft storage locker under flybridge staircase
• Line storage
• Lockable hatch to storage/engine room with gas struts Storage compartment for remote
• fuel valves, manual bilge pump with valve and manual controls for automatic fire extinguishers
• Transom locker
• Two transom gates leading to the swimming platform
• Hot and cold transom shower Shore power inlet 220/240 V
• Cockpit cover

LOWER HELM STATION

• Two helmsman seats at the helm station with leather upholstery and manual fore-and-aft adjustment
• Instrument console with controls and engine monitoring instruments and fuel gauges • Dual-station instrument and control panel at lower helm
• 1. 16-inch colour multifunction display with GPS/chartplotter, log and depth sounder
• 2. 9-inch multifunction display with engine monitoring instruments (including fuel level and consumption)
• 3. Electro-hydraulic power steering system
• 4. Adjustable steering wheel
• 5. High-speed magnetic compass
• 6. Electronic engine controls
• 7. Trim tab controls with indicators
• 8. Bow thruster control
• 9. Remote electric windlass control
• 10. Autopilot
• 11. Speed and distance log
• 12. Depth sounder with alarm
• 13. VHF with DSC R/T with intercom system
• 14. Remote-controlled searchlight
• 15. Horn button (to control two electric horns)
• 16. Engine warning system with audible and visual alarm
• 17. Audible and visual alarm for bilge pumps
• 18. Engine room fire suppression system
• 19. Footrest
• Drink holders (3)
• Electric drop-down window on starboard side
• Tempered glass screen (clear for night vision)
• Windscreen wipers with fresh water windscreen wash
• Stowage compartment on port side
• External black mesh windscreen covers
• Bilge pump controls with visual indication of normal pump operation
• 24 V and 240 V electrical control panel
• Switches for anchor light, helm and navigation lights
• USB charging points (2) (USB-A and USB-C)
• LED overhead lighting (24 V) and night lighting
• Carpet

FLYBRIDGE

• Dual station instruments and controls (see 'Lower helm station') Electrohydraulic power steering system with adjustable steering wheel
• Windscreens
• Two helm seats with manual fore-and-aft adjustment
• Audible and visual bilge pump alarm
• Engine room fire suppression system
• Observation hatch leading to aft cockpit Ladder for access to aft cockpit Stainless steel handrails
• Stainless steel handrail around flybridge access hatch
• Cool bag in navigator seat pedestal
• Compact U-shaped seating convertible to sun pad on starboard side
• U-shaped upholstered seating area on starboard side
• Drink holders (8) Folding teak table with drink holders (4)
• Serving station with sink, storage, electric barbecue and waste bin
• Fusion MS-SRX400 audio system paired with 7.7-inch waterproof Fusion speakers
• LED deck-level lighting
• USB-A charging points (2)
• GRP radar arch
• Two whip aerials for VHF R/T and radio Console and exterior furniture covers where required

DECK SALOON

• U-shaped sofa with storage drawers (port side) Coffee table
• Electric drop-down window (port side)
• Crockery storage locker
• Buffet unit with bottle and glass storage and refrigerator
• 50-inch LED TV, height-adjustable
• Fusion MS-RA770 audio system paired with Focal 100 ICW6 (2) speakers Panoramic tinted tempered glass windows on port and starboard sides
• Manual roll-up blinds on all windows
• LED overhead and concealed lighting (24 V)
• Stairway to lower accommodation Carpeting

DINING AREA

• L-shaped settee on starboard side Folding dining table Sliding stainless steel panelled doors leading to cockpit
• Three panels (one fixed, two sliding) with built-in tilt window at galley aft
• 220/240 V electrical outlet (1)
• USB charging points (2) (USB-A and USB-C)
• LED overhead and concealed lighting (24 V)
• Manual roll-up blinds on windows
• Manual blinds on door Carpeting

ACCOMMODATION

• All cabins and heads feature opening portholes
• All cabins fitted with power outlets
• 220/240 V and USB charging points
• All heads fitted with freshwater electric toilets and 240 V shaver sockets

OWNER'S CABIN

• Large double berth with bedside tables and drawers below
• Twin-seat settee to port with storage locker
• Hanging wardrobe with shelving and mirror
• Vanity unit to starboard
• Pull-out mirror on vanity unit washbasin counter
• Fusion Apollo MS-RA670 audio system paired with Focal 100 ICW6 speakers (2) Panoramic windows including opening portholes
• Manual roll-up blinds on all windows
• LED overhead and concealed lighting (24 V)
• Individual berth reading lights
• 220/240 V outlets (2)
• USB charging points (4) (2 x USB-A and 2 x USB-C)
• Carpet

ENSUITE HEAD

• Thermoformed washbasin with solid surface countertop
• Mirror with medicine cabinet Storage lockers
• Shower compartment with automatic water drainage system
• Window with opening porthole Manual lift blinds on windows
• LED overhead and concealed lighting (24 V)
• Bathroom accessories (toilet paper holder, toilet brush with holder, soap dispenser, toothbrush holder and clothing hooks) Hard surface flooring

FORWARD CABIN

• Large double bed with pull-out drawers below
• Half-height mirror above dresser with storage drawer behind (port side)
• Wardrobe with shelves and mirror
• Lockers
• Windows with opening portholes
• Manual roll-up blinds on all windows
• Deck emergency hatch
• LED overhead and concealed lighting (24 V)
• Individual berth lights 220/240 V sockets (2)
• USB charging points (4) — two on each side (2 x USB-A and 2 x USB-C)
• Carpet

ADJACENT HEAD / WC

• Access from hallway/corridor and forward cabin
• Thermoformed washbasin with solid surface countertop
• Mirror with storage compartment Storage lockers
• Shower compartment with automatic water drainage system
• Window with opening porthole Manual lift blinds on windows
• LED overhead and concealed lighting (24 V)
• Bathroom accessories (toilet paper holder, toilet brush with holder, soap dispenser, toothbrush holder and clothing hooks) Hard surface flooring

GUEST CABIN STARBOARD

• Two single beds with pull-out drawers below
• Bedside table
• Wardrobe with shelves and mirror
• Lockers
• Window with opening portholes
• Manual roll-up blinds on windows
• LED overhead and concealed lighting (24 V)
• Individual berth reading lights
• 220/240 V socket (1)
• USB charging points (2) (USB-A and USB-C)
• Carpet

HALLWAYS / CORRIDORS AND PASSAGEWAYS

• Storage space for cleaning supplies and laundry equipment
• Under-stair storage locker
• Double-height storage locker
• LED overhead lighting (24V)

POWER AND PROPULSION SYSTEMS

• Propeller shafts manufactured by Marinemet
• 5-blade nickel-aluminium bronze propellers
• Bow thruster (170 kgf) with dual-station control
• High-speed balanced rudders
• Power-assisted steering system
• Trim tabs with indicators
• Cathodic protection of stern tube system
• Stern tube system, engines, fuel tank fillers, etc. all electrically bonded • Clad bulkheads of forward and aft engine rooms and engine room interior lining, including insulation with sound-absorbing material layers
• Volumetric air intakes
• Engine room exhaust fan with electronic delay
• Engine exhaust silencers and water-cooled exhaust pipes
• Engine beds integrated into hull for strength and vibration absorption
• Shock-mounted engines
• Automatic fire extinguisher with remote control
• Automatic and manual bilge pumps
• Engine room lighting
• Engine room access hatch and ladder
• Electronic engine and gearbox control
• Fresh water point in engine room
• Dripless self-aligning shaft seals

24 volts:

• 4 heavy-duty engine start batteries
• 4 heavy-duty auxiliary batteries
• Battery tie device with remote control from helm station
• Both battery banks charged via voltage-sensing relay which parallels both battery banks when charging source present
• 60 A 24 V idle charging battery charger
• Battery isolator switches with remote control on main distribution panel
• Circuit breakers in all circuits
• 12 V voltage converter for certain navigation and radar circuits
• Princess Connect telemetry and maintenance system

European specification:

• 11 kW diesel generator at 50 Hz = in their own sound shields, with water cooling and exhaust systems with special silencers, and with remote control from main control panel

USA specification:

• 11.5 kW diesel generator at 60 Hz = in their own sound shields, with water cooling and exhaust systems with special silencers, and with remote control from main control panel
• Automatic fire extinguisher located in the engine room. Shore power to generator changeover control operated from the main control panel
• Polarity monitoring system
• Earth leakage safety cut-out
• Circuit breakers in all circuits
• 220/240V power outlets and USB charging points in all cabins

FUEL SYSTEM

• Two fuel tanks (marine-grade NS8 alloy) with interconnection system providing 726 gal/872 US gal/3300 l capacity
• Fuel filling points on port and starboard sides
• High-performance duplex fuel filters with water separators and integrated changeover valves
• Water presence warning sensors connected to indicator lights on the main control panel
• Remote fuel shut-off controls in the cockpit locker for main engines and generators
• Fuel gauges on both helm stations (via multifunction displays)

BILGE PUMPS

• Electric bilge pumps with automatic/manual control in engine room (2), lazarette (2) and forward accommodation (total 6)
• High-capacity manual bilge pumping system with valves and suction points in the same zones

FIRE EXTINGUISHERS / FIRE SUPPRESSION SYSTEMS

• Automatic engine room fire suppression system (with manual override) and alarm system at control stations (main helm and flybridge), providing automatic shutdown of engines, generators and ventilation fans
• Automatic fire suppression system beneath main helm station
• Portable fire extinguishers (5) in owner's stateroom, forward guest stateroom, starboard guest stateroom, galley and main helm station

OTHER STANDARD EQUIPMENT

• Aft flagpole Mooring fenders (6)
• Mooring lines (4)
• Tool kit
• Boat hook
• Emergency anchor windlass handle
• First aid kit
• Bedspreads provided in all staterooms (except additional crew cabin)
• Owner's manual and engine operating manual

FINISHES

• Teak-laid transom platform, transom steps, cockpit deck, flybridge ladder and steps leading to foredeck
• V-groove hardwood flooring in galley
• Rovere oak furniture with satin finish as standard (silver oak or walnut with semi-gloss or gloss finish available as option)
• Hard-surface flooring in all heads in guest accommodation
• Solid-surface vanity tops in all ensuite heads in guest accommodation Solid-surface galley countertop
• White vinyl exterior upholstery as standard with option to upgrade to premium Comfort Exterior upholstery at additional cost
• Manual roller blinds on all windows and portholes (except porthole in crew cabin)
• Additional crew cabin furniture in specified marine-grade wood with carpet
